China 12MM Birch Plywood for Subfloor

Short Description:

  • China 12MM Birch Plywood for Subfloor
  • Loading Quantity: 20’GP-8pallets/20CBM, 40’HQ-16pallets/40CBM
  • MOQ: 1X20’FCL
  • Supply Ability: 5000CBM/Month
  • Payment Terms:  T/T or L/C
  • Delivery Time: Within 20 days after deposit confirmation
  • Certification: CE, FSC, EUTR, CARB,EPA, JAS, ISO
  • Material:  Baltic Birch, Russia Birch
  • Size: 1220x2440mm/1250x2500mm/custom
  • Thickness: 9mm, 12mm, 15mm
  • Glue:  E0/E1/Melamine/Phenolic-WBP/Custom
  • Formaldehyde Release: E0≤0.5mg/L, E1≤1.5mg/L, E2≤5.0mg/L
  • Density: 680-700KGS/CBM
  • Moisture Content:  <12%



Product Detail

Product Tags

Product Description

Full Birch Plywood (also called throughout birch plywood)

Baltic Birch Plywood Full Sheets



Face Material 1.5mm BB Grade Birch Ply
Back Material 1.5mm CP Grade Birch Ply
Dimensions (mm) 2435mm x 1235mm,1935mm x 1235mm, 1235mm x 1235mm, 1220mm x 2440mm
Thickness Range(mm) 9mm,  12mm, 15mm

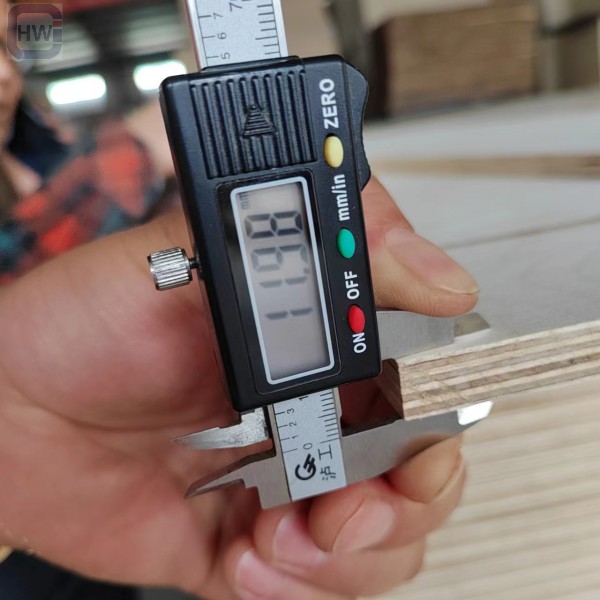

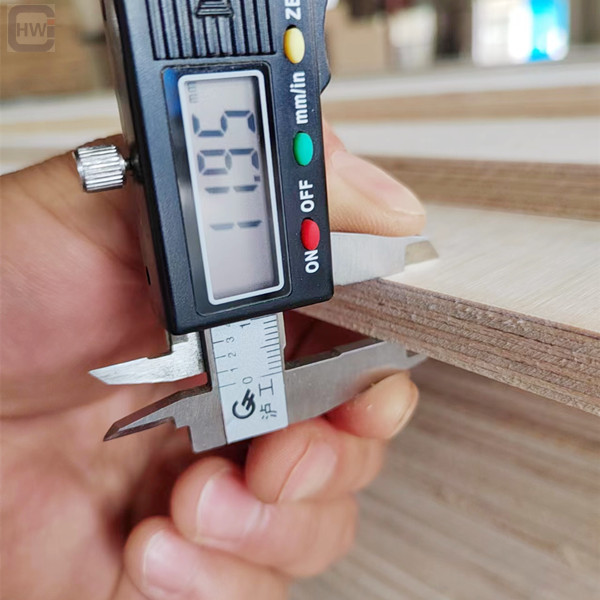

Thickness Tolerance -0.3mm, +0.2mm

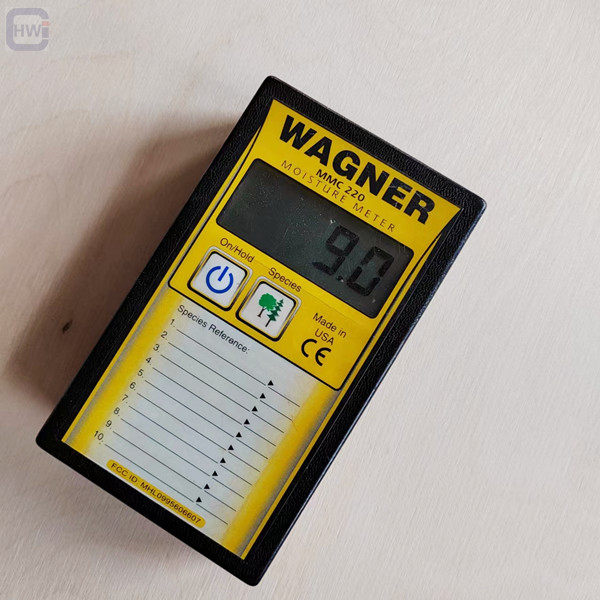

Moisture Content 6%-10%
Wood Species For Core 1.5mm Thick Russian Birch Ply
Glue Spreading Water Proof Phenolic Resin Glue, BFU100, WBP Grade, A Bond
Squareness Tolerance(mm) ≤1mm / 1.5 m
Formaldehyde Emission ≤0.3mg/L F4 Star (JAS),  ≤0.04ppm -CARB P2 / EPA,  ≤0.4mg/L Super E0 (AS 6669),  ≤1.0mg/L (EN717-1)
Quality Standards EN13986, EN314-2 Class-3, EN717-1, EN310, EN315, AS6669, AS / NZS 2269, AS / NZS 2098
Certificates / Test Reports FSC, CE, EUTR, CARB, EPA, SGS, BSCI, TSCI
Product Application Engineered Hardwood Flooring Base, Multi-layer Hardwood Flooring substrates



Full Birch Plywood (4)

The characteristics of full birch plywood

(1) . There is a big difference between the prices of birch face/backs of different grade . For example, B Russian grade face is 4-6 times as expensive as E Russian grade face .

(2). The plywood is well sanded and very flat and smooth .
(3). The density of full birch plywood is much higher than poplar core plywood .

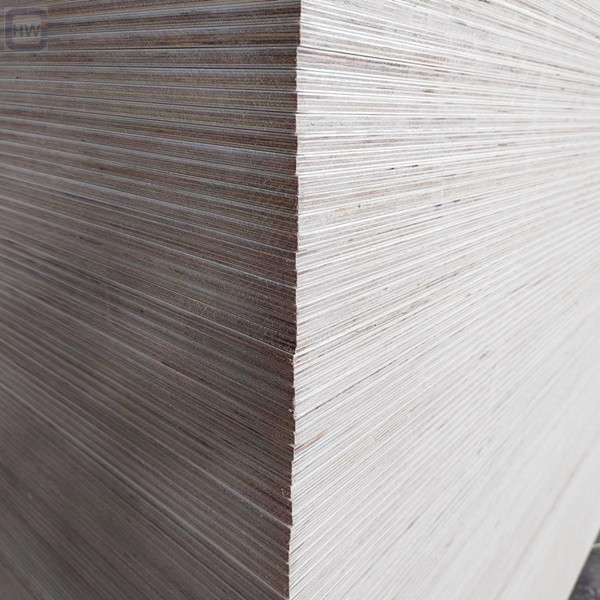

(4). The birch core veneers are all whole piece core veneers .
(5). The inner quality is good and prices is much higher .

We supply Baltic Birch plywood because of several reasons:

  1. Birch is very strong material. Plywood made of birch is extremely hard and stable material providing extraordinary technical features.
  2. Appearance of Russian (Baltic) birch is very attractive and suitable for furniture and decoration.
  3. Holding strength of Baltic birch plywood is real good.
6

The common construction/quality-requirement of full birch plywood Customers usually require the full birch plywood as the following:

SEQ No. FBP-1:
Full Birch Plywood,B/BB,BB/BB,BB/CP grade as per Russian grading system (or C+/C; C/C; C/D grade as per US grading system ) birch F/B, A grade birch core, WBP(phenolic) glue

 By glue.
– Exterior (WBP meaning Water Boiled Proof) or
– Interior (MR meaning Moisture Resistant) glues.
In both cases formaldehyde emission is E1 and in most cases CARB Phase 2 certified

Its Modulus of Elasticity(MOE), Modulus of Rupture(MOR), Bonding Strength, Bending Strength, etc.are tested in compliance with the standards of EN13986, EN314-2 Class-3, EN717-1, EN310, EN315, AS6669, AS / NZS 2269, AS / NZS 2098





preview

Delivery Instructions

Packing Standard Export Pallet Packing Inner Packing Pallet is wrapped with a 0.20mm plastic bag
Outer Packing Pallet is covered with plywood or carton and then PVC/steel tapes for strength
Loading Quantity 20’GP 8pallets/20cbm
40’GP 16pallets/40cbm
40’HQ 18pallets/40cbm



Packaging and Containerization

packing 02
13
11
15
12
7

Application

Birch Flooring Base Plywood for other appliciation.

For interior application as high quality furniture/roofing panel/underlayment/subfoor; for exterior application as high quality building materials/fences/signs and so on .
