F17 Structural Formply
Product Details
F17 Formply is plywood made with a high-density overlay (HDO) of Phenolic resin infused paper bond to give you an amazing off form finish and it’s structural integrity allows multiple reuses across the Concrete, Building and Construction Industries.
F17 Formply for strong, stable, concrete formwork

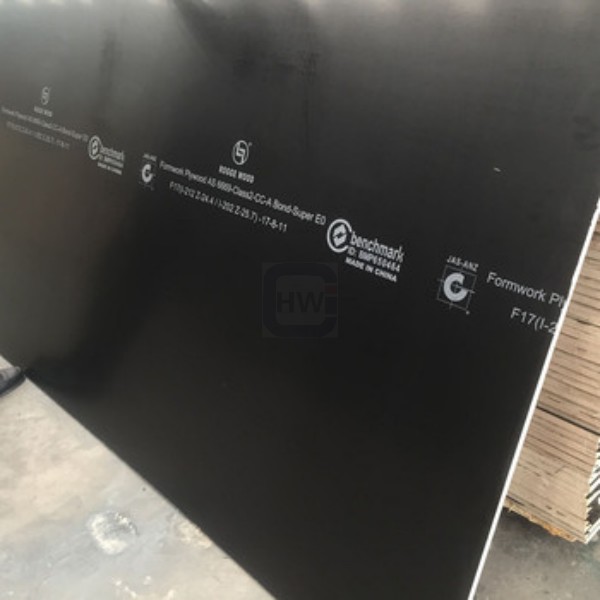

Surfaces
Special Custom HDO Film Facing Does Not Absorb Water.
And It Does Not Swell Or Shrink.
The Robust, Smooth Surface Guarantees First-class Concrete Quality Even After Many Uses.

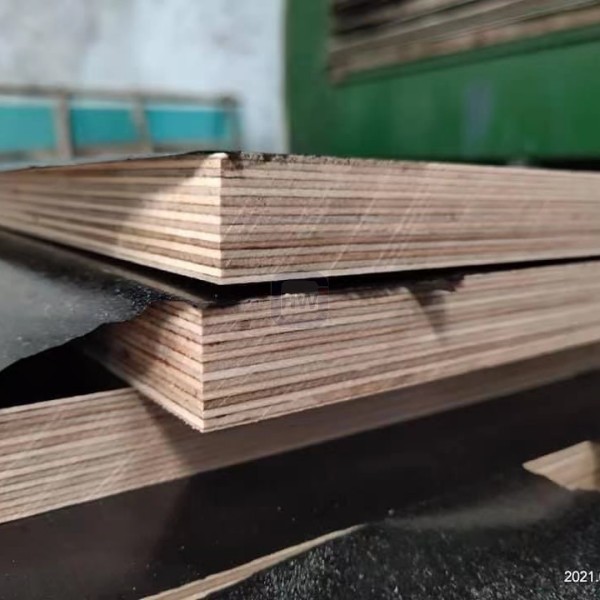

Structure
Manufactured From High-grade Full hardwood Veneers Bonded Together With Super E0 Waterproof Adhesive, Which Has Superior Bond Strength.
The Oblique Jiont And Hot-melt Splicing Technology Are Used To Avoid Every Possible Gap.
To Ensure Excellent Hardness And Stability.
Bonding
Super E0 Waterproof Adhesive. If Put In Boiling Water For 72 Hours, It Is Still Glue-sticking And Non Deformed.
Sealing
The Edges 4 Times Sealed With Waterproof Paint In The Factory For Minimise Moisture Penetration.
Features:
Each sheet measures 2400 x 1200 mm, 1800 x 1200 mm
- 17 mm thickness
- Australian Standard AS6669 Approved
- F17 Certified Grade
- Smooth finish perfect for formwork
- Also available in other sizes
Delivery Instructions
|
Container Type |
Pallets |
Volume |
Gross Weight |
Net Weight |
|
20 GP |
10-12 pallets |
22 CBM |
13000KGS |
12500KGS |
|
40 HQ |
20-27 pallets |
43 CBM |
25500KGS |
26000KGS |
Packaging and Containerization
Application
Film Faced Plywood used for Construction, Formwork Syetem etc.
