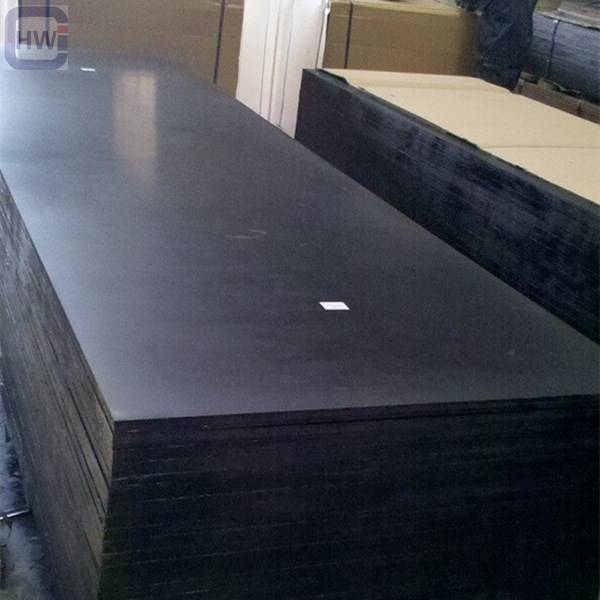

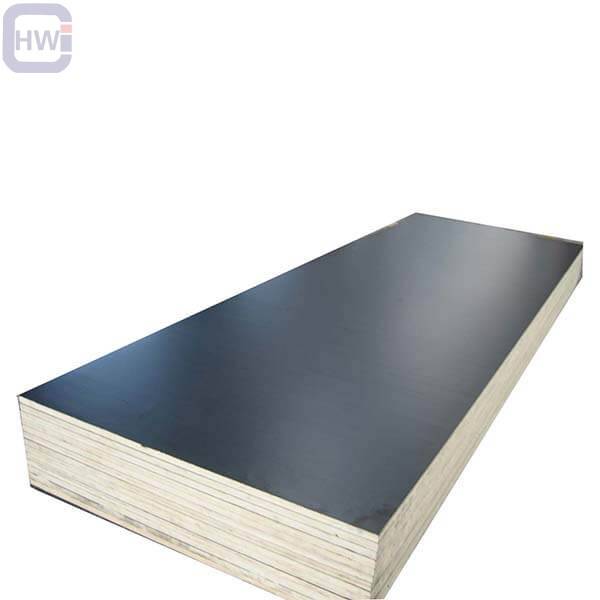

HW 2000x5400mm Oversized Finger Joint Strip Core Film Faced Plywood Board
Plywood, film faced plywood, Oversized Film Faced Plywood Board also known as clean water template, is produced according to GB 17656-2008. It is made of rotary cut veneers from Chinese poplars and high-quality waterproof glue, and is processed by high temperature and high pressure.It can be used repeatedly for more than 10 times, without warping and deformation for its good water resistance character.It can be widely used in various concrete engineering such as high-speed railways, subways, and airport ports, as well as in infrastructure projects such as shear walls, vertical wall panels, bridges, dams and tunnel construction, civil construction and commercial engineering.It could shorten the construction period: firstly, it is easy to demould, only one-seventh time of the steel mold demoulding; secondly, the surface is flat avoiding the secondary plastering process; thirdly, good insulation performance makes winter construction favorable.
Film faced plywood,shuttering plywood ,construction plywood,concrete plywood, 18mm thickness is very popular , plywood can be made by full poplar core,finger joint core. We use good veneers ,so its denisty is high with strong bearing capacity and long service life .
Parameters of Oversized Film Faced Plywood Board
| Name | HW Oversize Film Faced Plywood | |
| Brand | HW | |
| Size | 2000x5400mm or upon request | |
| Thickness Tolerance | 18--30mm or upon request | ±0.5mm |
| Core | 100% Poplar or combi | |
| Film options: | Domestic Black or Brown film Dynea film | |
| Edge | Sealed with waterproof paint, paint color can be upon request | |
| Glue | Mr, Melamine, Phenolic WBP | |
| Hot press time | 2 time or 3 times for the whole panel | |
| Formaldehyde Emission level | Carb,E0,E1,E2 | |
| Moisture content | 6%-10% at the time of shipment | |
| Usage | Real estate construction /formwork panel | |
| Package | Outer packing: pallets are covered with plywood or carton boxes and strong steel belts | |
| Certification | CE, ISO, FSC Certified, CARB | |
| Delivery time | Within 2-3 weeks upon down payment or upon the opening of L/C | |
| Min Order | 1*20'ft | |
| PAYMENT TERM | TT or L/C | |
| Supply ability | 5000 M3/per month | |
| MARK | HW is HW oversize/jumbo film faced plywood for large sheet size demand. | |
Packaging and Containerization of Oversized Film Faced Plywood Board
Application:
OverSized Film Faced Plywood used for RV/Truck Floor, Construction, Formwork Syetem etc.
