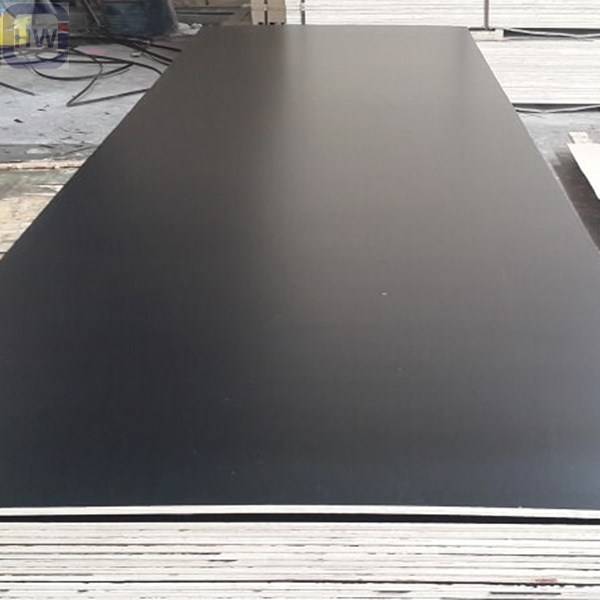

HW Black Oversize Film Faced Plywood

Plywood, film faced plywood,also known as clean water template, is produced according to GB 17656-2008. It is made of rotary cut veneers from Chinese poplars and high-quality waterproof glue, and is processed by high temperature and high pressure.It can be used repeatedly for more than 10 times, without warping and deformation for its good water resistance character.It can be widely used in various concrete engineering such as high-speed railways, subways, and airport ports, as well as in infrastructure projects such as shear walls, vertical wall panels, bridges, dams and tunnel construction, civil construction and commercial engineering.It could shorten the construction period: firstly, it is easy to demould, only one-seventh time of the steel mold demoulding; secondly, the surface is flat avoiding the secondary plastering process; thirdly, good insulation performance makes winter construction favorable.
Film faced plywood,shuttering plywood ,construction plywood,concrete plywood, 18mm thickness is very popular , plywood can be made by full poplar core,finger joint core. We use good veneers ,so its denisty is high with strong bearing capacity and long service life .
Parameters of Oversize Film Faced Plywood
Place Of Origin | Jiangsu,China (Mainland) |
Size | 1.small sizes:915x1830mm,610x2500mm 2.standard sizes:1220X2440mm, 1250x2500mm 3.big size:1500x3000mm/1525*3050mm,(accept customization) |
Thickness | From 12mm to 40mm |
Material | Peeing veneer;poplar;combi;eucalyptus;birch;pine;meranti; othe hardwood;or finger joint recycled core; |
Face&back | phenoli paper film;dynea;enso;local;smooth;ultra brighten; antislip(wire mesh,anti-skid) |
Glue | phenolic formaldehyde adhesive(PF,phenolic WBP glue,phenolic glue) melamine WBP glue(MUF,MF,melamine glue) |
Emission content of formaldehyde | E0(PF Glue);E1/E2(MUF) |
Usage | construction;construction formwork;template,mold;shuttering;decking;special packing; Truck Floor, RV Floor etc |
Layers | finger jointed(5,7ply),9mm(5,7,9ply),12mm(7,9Ply) 15mm(7,9,11ply),18mm(7,9,11,13,15ply) |
Certificate | CE,CARB,, EPA, FSC,ISO9001 |
Moisture content | 8%-12% |


Packaging and Containerization of Oversize Film Faced Plywood


Application:
OverSized Film Faced Plywood used for RV/Truck Floor, Construction, Formwork Syetem etc.
