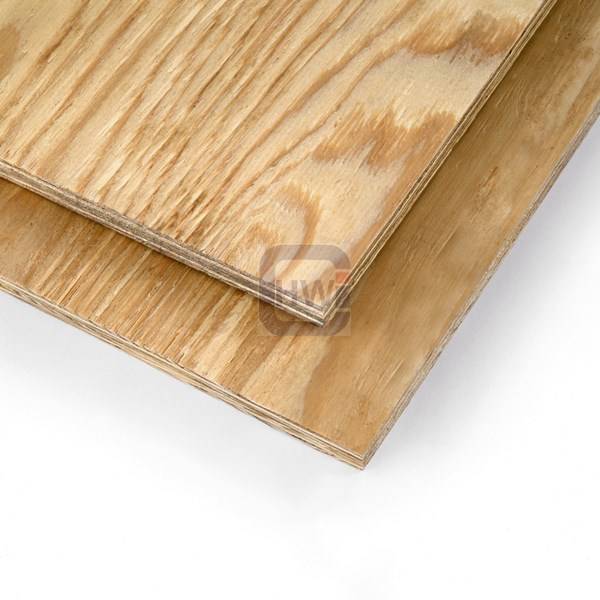

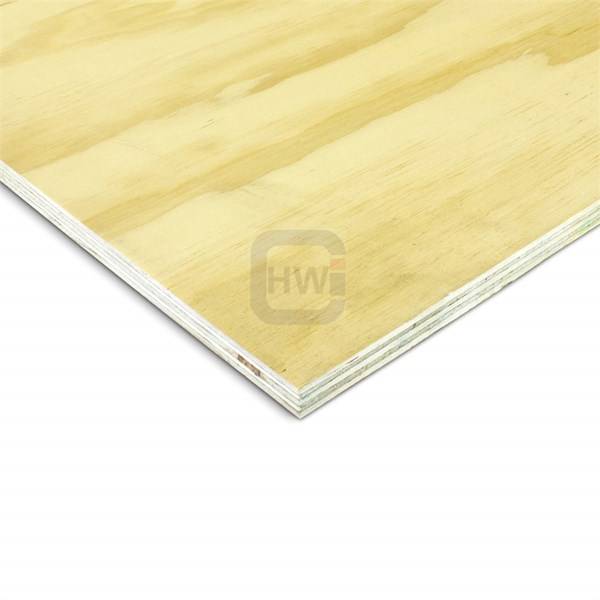

HW Structural CD Plywood 2400 x 1200mm 12mm

Short Description:

  • Structural Plywood is typically a high-quality product coming in 4′ x 8′ two-sided marine grade panels in thicknesses ranging from ⅛” to 1″.
  • Supply Ability: 5000CBM/Month
  • Payment Terms:  T/T or L/C
  • Delivery Time: Within 20 days after deposit confirmation
  • Certification: CE, FSC, EUTR, CARB,EPA, JAS, ISO
  • Material:   Radiata Pine, Russia Larch
  • Size: 1200×2400/1200x1800MM
  • Thickness: 4MM–30MM/custom
  • Glue:  Phenolic-WBP/Custom
  • Formaldehyde Release: E0≤0.5mg/L, E1≤1.5mg/L, E2≤5.0mg/L
  • Density: 560-700KGS/CBM
  • Moisture Content:  <12%



Product Detail

Product Tags

Structural Plywood has been manufactured at our plant in China, for in excess of 15 years and has been used successfully in the Asia, Australia and New Zealand.

Structual plywood for strong, stable. Structural Plywood has been manufactured at our plant in China, for in excess of 15 years and has been used successfully in the Asia, Australia and New Zealand.
For domestic and light commercial structural and decorative applications  manufactures structural plywood in a range of widths, lengths, thicknesses and grades to AS/NZS2269 from Newzealand and Russia sourced plantation Radiata Pine and Larch. Products are certified by the Certmark.
Structural plywood is for use in all permanent structural and engineered applications.
A Bond is durable and permanent under conditions of full weather exposure and long term stress.
Structural plywood should be preservative treated to ensure it lasts its full service life as it is manufactured from a range of hardwood and softwood timber species.
For termite and rot resistance, plywood can be treated to H2, H3 or H4 standards. Or for a lower cost alternative can be manufactured with a bifenthrin glue line additive which provides termite resistance but is only suitable for use south of the tropic of capricorn.
Testing and certification carried out by Certemark Iternational (CMI) and DNV.
Formply provides assurance of quality and consistency.

Nomal

Thickness

Sheet Size (mm)

Grade

Density   (kg/cbm)

Glue

Thickness

tolerance

Packing

Unit

(sheets)

Face and back

Core Materials

Moisture

1/8inch  (2.7-4.0mm)

1200×2400

A/B

B/C

C/C

C/D

580

Larch/ Pine

Larch / hardwood  / pine

8-14 %

Wtaerproof Super E0

+/-0.2mm

150 / 400

1/2inch (12-12.7mm)

1200×2400

550

Larch/ Pine

poplar / hardwood  / pine

8-14 %

+/-0.5mm

70 / 90

5/8inch (15-16mm)

1200×2400

530

Larch/ Pine

poplar / hardwood  / pine

8-14 %

+/-0.5mm

60 / 70

3/4inch (18-19mm)

1200×2400

520

Larch/ Pine

poplar / hardwood  / pine

8-14 %

+/-0.5mm

50 / 60

structure plywood 03

Advantage of HW structural Plywood

Manufactured from sustainably-grown plantation pine and Larch
Available in B, C and D surface appearance grades
Sheet thicknesses: 3 to 40mm
Sheet dimensions: 2400/1800 × 1200mm
Supplied in F8/F27 stress grade
Uncoated high appearance surface suitable for clear, stain and paint finishes
Contains a second void-free layer under surface veneer increasing protection
from moisture bubbles and high point loads
Low formaldehyde emission (E0)

usage 01
usage 02
CD-Structural-Ply-14
CD-Structural-Ply-15

Uses of HW structural Plywood

As structural plywood contains veneers measured and tested for strength and stiffness, it has proven to be quite safe and reliable for use in commercial and industrial buildings. Whatever high loading criteria required by building codes, structural plywood can be easily detailed to meet them. The same goes for any criteria set by building codes for fire, durability, energy efficiency and moisture.

Structural plywood has proven to be popular for use both as interior and exterior cladding. Many homes today have ceilings and walls that make use of structural plywood as cladding. Because of its natural strength, structural plywood is also ideal for bracing, which effectively makes shaping and designing windows easier creatively. They are even resilient and strong enough to be used in agricultural buildings and sporting complexes as flooring.

Structural plywood is also commonly used for pallets, crates, boxes, storage decks, truck bodies, truck floors, cabinetry and displays, hoardings such as billboards and furniture.

usage 03
usage 04
structural plywood usage

Packaging and Containerization of Structural Plywood

6
IMG_20210309_151401_副本
1
IMG_20201219_145022_副本
2
3f23483871e242d3712f30e96b88d56
