HW T&G Tongue And Groove CD Pine Plywood
Product Details
Brace Ply
Used for structural bracing, F22 Hardwood Bracing plywood is available for use for structural bracing applications. Available in 6
different sheet sizes in 4mm/4.5 thick.
Brace ply is regularly used in applications such as the backing of cabinets, linings of a garage, and bracing in construction for
both load bearing walls and roofs.
The plywood is sourced from resources that have been legally harvested and comply with AS2269 for the A-Bond Phenolic glue bond.
Specifications
Veneer Grades: "D" grade face "D" grade back
Stress Grades: F22
Dimensions: 2440mm x 900mm, 2745mm x 900mm, 3050mm x 900mm ,2440mm x 1200mm, 2745mm x 1200mm,3050mm x 1200mm
Thicknesses: 4mm/4.5mm
Glue Bond: A-Bond phenolic – 72 hour boil
Species: Selected Hardwoods
Density: 725 kg/m3 approx
Emissions: E0
different sheet sizes in 4mm/4.5 thick.
Brace ply is regularly used in applications such as the backing of cabinets, linings of a garage, and bracing in construction for
both load bearing walls and roofs.
The plywood is sourced from resources that have been legally harvested and comply with AS2269 for the A-Bond Phenolic glue bond.
Specifications
Veneer Grades: "D" grade face "D" grade back
Stress Grades: F22
Dimensions: 2440mm x 900mm, 2745mm x 900mm, 3050mm x 900mm ,2440mm x 1200mm, 2745mm x 1200mm,3050mm x 1200mm
Thicknesses: 4mm/4.5mm
Glue Bond: A-Bond phenolic – 72 hour boil
Species: Selected Hardwoods
Density: 725 kg/m3 approx
Emissions: E0
CD Structural Plywood
Superior Strength Exterior Plywood
Pine structural plywood and Hardwood structural plywood are both manufactured to AS/NZ2269 using a phenolic "A" bond resin bonding
the individual timber veneers.
This exterior grade plywood has known and consistent structural performance and the design properties are published in the Timber
Structures Code AS1720.1 & is certified by the Engineered Wood Products Association of Australasia (EWPAA) as compliant for Structural Plywood.
Specifications – Hardwood
Veneer Grades:"C" grade face "D" grade back
Stress Grades: F11/ F14 / F17/ F22
Dimensions: 2400mm x 1200mm
Thicknesses: 7mm, 9, 12, 15, 17, 19, 21 & 25mm
Glue Bond: A-Bond Phenolic – 72 hour boil.
Species: Selected Hardwoods
Density: 725 kg/m3 approx
Preservative Treatment: H2 Glue Line Treated
Emissions: E0
Pine structural plywood and Hardwood structural plywood are both manufactured to AS/NZ2269 using a phenolic "A" bond resin bonding
the individual timber veneers.
This exterior grade plywood has known and consistent structural performance and the design properties are published in the Timber
Structures Code AS1720.1 & is certified by the Engineered Wood Products Association of Australasia (EWPAA) as compliant for Structural Plywood.
Specifications – Hardwood
Veneer Grades:"C" grade face "D" grade back
Stress Grades: F11/ F14 / F17/ F22
Dimensions: 2400mm x 1200mm
Thicknesses: 7mm, 9, 12, 15, 17, 19, 21 & 25mm
Glue Bond: A-Bond Phenolic – 72 hour boil.
Species: Selected Hardwoods
Density: 725 kg/m3 approx
Preservative Treatment: H2 Glue Line Treated
Emissions: E0
Product Parameters
| Product Name | HW Tongue And Groove Plywood | ||
| Size | 1220x2440mm/1250x2500mm/ or as clients requirement | ||
| Thickness | 5-30mm | ||
| Thickness Tolerance | +/-0.2mm (thickness<6mm), +/-0.3~0.5mm (thickness≥6mm) | ||
| Face/Back | E-Wood, Okoume, Ilomba,Poplar, Birch, Bintangor, Hardwood, Pine, Pencil Cedar, Keruing, Agathis, Meranti, ect. | ||
| Core | Poplar, hardwood, eucalyptus, okoume, birch, pine, combi, ect. | ||
| Joint Way of The Core | Overlap joint, end joint, scarf joint or finger joint | ||
| Glue | E0, E1, E2, MR, Melamine or WBP | ||
| Grade | B/BB,BB/BB,BB/CC,DBB/CC; ect | ||
| Density | 520~700kg/m3 | ||
| Technical Parameters | Moisture Content | <12% | |
| Water Absorption | ≤10% | ||
| Modulus of Elasticity | ≥5000Mpa | ||
| Static Bending Strength | ≥30Mpa | ||
| Surface Bonding Strength | ≥1.60Mpa | ||
| Internal Bonding Strength | ≥0.90Mpa | ||
| Screw Holding Ability | Face | ≥1900N | |
| Edge | ≥1200N | ||
| Usage & Performance | Plywood is widely used for Automotive Interior ,furniture, decoration, construction and packing. With good properties, such as, easy fabricability, high bending strength, strong screw holding ability, heat resistant, anti-static, long-lasting and no seasonal effect. | ||
| MOQ | 1x20’FCL | ||
| Supply Ability | 5000cbm/month | ||
| Payment Terms | T/T or L/C at sight | ||
| Delivery Time | Within 20 days after receiving deposit or original L/C at sight | ||
| Certification | CE, FSC, EUTR, CARB，EPA, JAS, ISO | ||

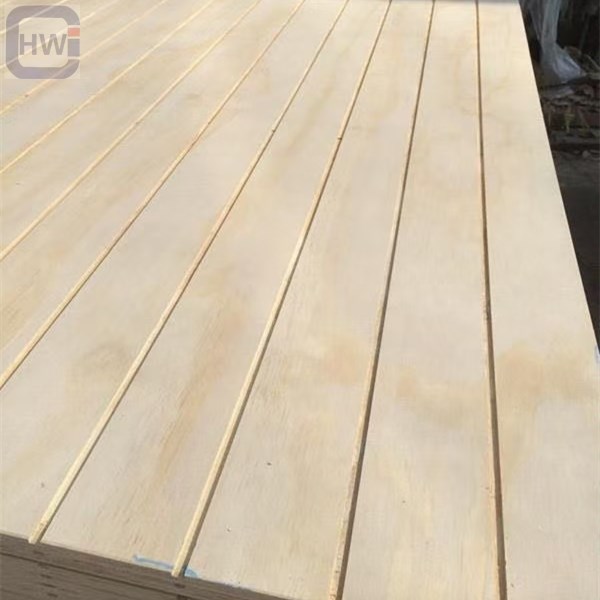

Details Images
Delivery Instructions
| Packing | Standard Export Pallet Packing | Inner Packing | Pallet is wrapped with a 0.20mm plastic bag | |
| Outer Packing | Pallet is covered with plywood or carton and then PVC/steel tapes for strength | |||
| Loading Quantity | 20’GP | 8pallets/22cbm | ||
| 40’GP | 16pallets/42cbm | |||
| 40’HQ | 18pallets/50cbm | |||
Packaging and Containerization

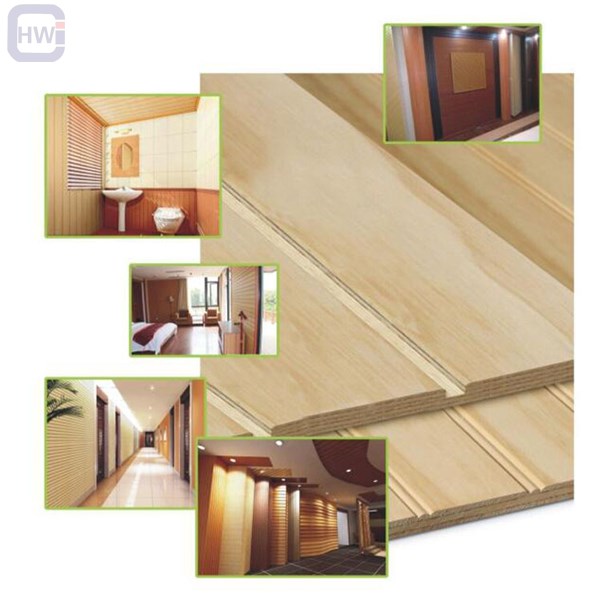

Application
Commercial Plywood for Furniture, counter tops, laminations, kitchens, and other interior work, as well as for other usages.
