Kitchen Cabinet HPL Plywood

Anti-Slip Wire Mesh Film Faced Plywood Featured Image

Short Description:

Kitchen Cabinet HPL Plywood

Loading Quantity: 20’GP-8pallets/22CBM, 40’HQ-18pallets/50CBM
MOQ: 1X20’FCL
Supply Ability: 5000CBM/Month
Payment Terms: T/T or L/C
Delivery Time: Within 20 days after deposit confirmation
Certification: CE, FSC, EUTR, CARB，EPA, JAS, ISO
Face/Back: HPL/custom
Core: Poplar/Eucalyptus/Birch/Combi
Size: 1220x2440mm/1250x2500mm/custom
Thickness:3–30mm/custom
Glue:E0/E1/E2/Custom
Formaldehyde Release: E0≤0.5mg/L, E1≤1.5mg/L, E2≤5.0mg/L
Density: 520-700KGS/CBM
Moisture Content: <12%

Send email to us

Product Detail

Product Tags

Product Details

HPL (High Pressur Laminates) is a kind of high-tech green environmental decorative material.It has excellent properties such as impact resistance, UV resistance, weathering resistance, abrasion resistance, scratch resistance, chemical corrosion resistance, easy cleaning and fire prevention, antistatic and moisture proof.

Made up of a wear-resistant overlay, decorative sheet and impact-resistant kraft, HW® High Pressure Laminate (HPL) offers long-lasting beauty, function and performance.

A high-performing, durable engineered surface used for a variety of vertical and horizontal applications, HW’s HPL also offers a broad range of attractive patterns and texture possibilities.

The value of HPL is often underestimated. The paragon of engineered laminates, HW’s HPL is an economical choice with lower minimum order quantities, easier maintenance and better lead times than comparable surfaces.

Ideal for countertops, cabinets, fixtures, shelves, architectural doors, walls and more, HW® HPL is also available in a number of specialty products, Writable Surfaces,and more.

Basic Parameters

HPL Thickness:	0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm;
HPL Color:	Solid color; wood grain;
HPL Finishing:	Matt & super matt, glossy & high glossy, texture, embossment
Plywood Thickness:	5mm to 30mm

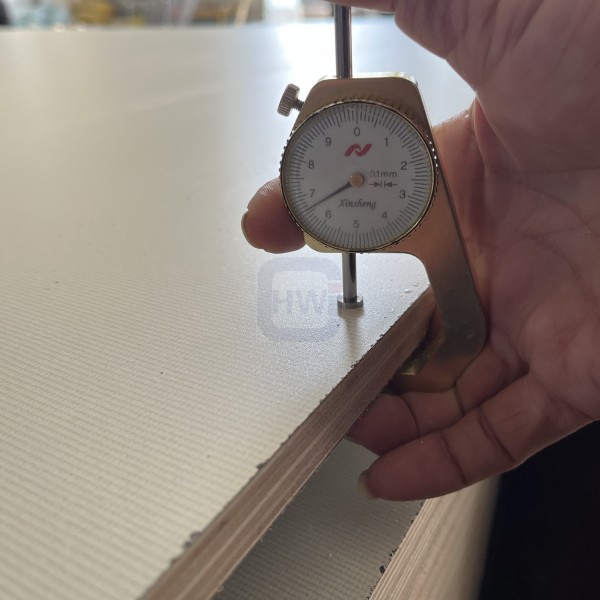

Thickness Tolerance:	＜6mm, +/-0.2mm ~ +/-0.3mm;＞6mm, +/-0.3mm ~ +/-0.5mm;
Plywood Dimensions:	1220X2440mm; 1250X2500mm; customized size;
Core Board:	Plywood ( poplar core, combi core, hardwood core, birch core, Blockboard, MDF , Particle board; )
Glue:	E2/E1/E0/CARB/WBP Melamine/WBP Phenolic
Formaldehyde Release:	E0≤0.5mg/L, E1≤1.5mg/L, E2≤5.0mg/L,

Technical Parameters

Moisture Content	8%~14%
Modulus of Elasticity	≥2500Mpa
Static Bending Strength	≥22Mpa
Surface Bonding Strength	≥1.20 Mpa
Internal Bonding Strength	≥0.55 Mpa
Screw Holding Ability	Face	≥1300N
	Edge	≥800N

Surface Species

Delivery Instructions

Packing	Standard Export Pallet Packing		Inner Packing	Pallet is wrapped with a 0.20mm plastic bag
			Outer Packing	Pallet is covered with plywood or carton and then PVC/steel tapes for strength
Loading Quantity		20’GP		8pallets/22cbm
		40’GP		16pallets/42cbm
		40’HQ		18pallets/50cbm

Packaging and Containerization

Application

①Kitchen cabinet; Wardrobe; Bathroom Vanity;

②School, office and shop fittings;

③Furniture, cabinet door, desks, worktops and shelves;

HPL is more than just a surface. It is a modern, highly attractive and multifunctional surface material. The outstanding product and environmental features turn it into a material flexible in application, which is head and shoulders above other surface materials and is used in nearly all areas of everyday life – such as kitchen, office and living room furnishing, bathrooms, interior finishes, wall coverings, construction of retail as well as trade fair units and vehicle manufacture. And new application areas are waiting to be explored.
